Precision Link Conveyors [LC Type]

LC Type

CE Certified Product – EN ISO 12100:2010

Precision Link Conveyors

Precision-link conveyors index components with high accuracy, speed and quality to give manufacturers a way to make assemble, mark, weld, and manufacturing operations more efficient.

Precision-link indexing conveyors are most suitable for high-speed assembly of components — especially when there are high part counts or complicated assembly processes. Work processes are usually performed along the conveyor’s linear sections. Our Precision Link Conveyors combine excellent accuracy with high load capacity to provide the versatility needed to meet virtually any automated assembly or manufacturing challenge. The heart of this package is our proven Packam Index Drive, which assures the highest quality and performance.

Selection Criteria: LC Type

Models:
LC100, LC150&LC200
Sold complete with Indexer + Geared Motor Package.

Mechanism Type: Globoidal

Mounting Arrangement: Caesural or Over-under

Features:

  • Modular design for flexible platform configurations.
  • Modular construction for flexible platform configurations.
  • Carousel or Over-Under working positions
  • Up to 200 indexes per minute depending on load
  • 100mm, 150mm & 200mm chain link length sizes
  • Packam Index Drive offers low peak acceleration and a smooth index.
  • Precision cam followers assure durability & accuracy
  • Through Hardened cams
  • Structural construction allows customization on conveyor
  • Electroless Nickel Plating (ENP) for medical applications

Indexes/minute:

  • <200

Direction of rotation:

  • Clockwise, counter clockwise

Accuracy:

  • Refer to model specific page in our Technical Product Catalogue

Wide Body Conveyors [LR Type]

LR Type

CE Certified Product – EN ISO 12100:2010

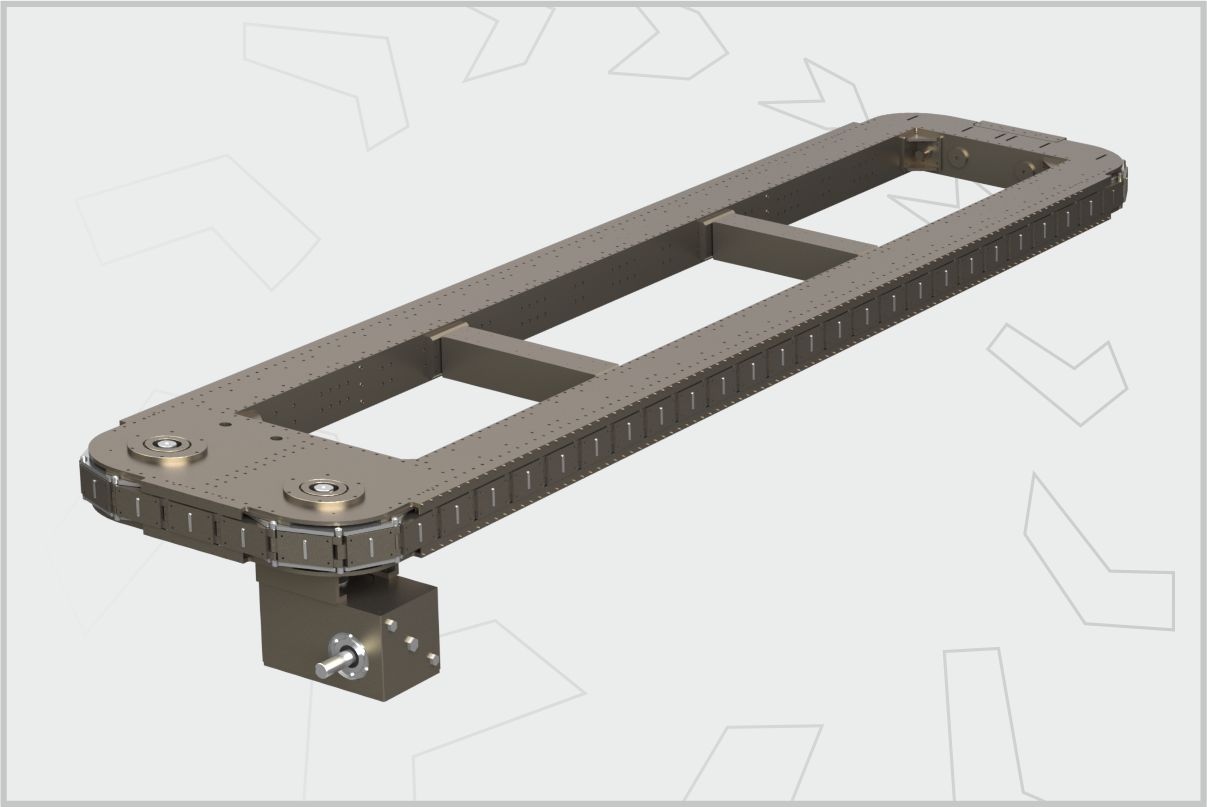

Wide-Body Link Conveyors

The LR series of precision link conveyor is an excellent choice for a robust, accurate linear assembly chassis.

Precision machined steel links are accurately advanced with either a fixed motion cam indexer or a servo driven. Our robust steel conveyor frame preloads the links in all directions. An innovative wide-body design provides adequate space for mounting of robotics and fixtures.

These conveyors are most suitable for high-speed assembly of components — especially when there are high part counts or complicated assembly processes. Work processes are usually performed along the conveyor’s linear sections. Most useful for manufacturing tasks for aerospace, solar and wind energy, automotive, defence, electronics, consumer goods, and medical devices, precision link conveyors are fast and accurate in positioning to allow assembly (and other tasks) on up to 150 parts per minute.

Selection Criteria: LR Type

Models:
LC200
Sold complete with Indexer + Geared Motor Package.

Mechanism Type: Globoidal

Mounting Arrangement: Caesural

Features

  • Higher accuracy and repeatability as compared to any other brand available in the market
  • Polygonal effect compensation cams
  • Through hardened CNC ground cams – ensures accuracy & long life
  • Precision Cam followers ensures accuracy & durability
  • Holds accuracy longer due to self-lubricating bush in links
  • Driven by Packam’s Ultra Precise Globoidal Cam Indexer ensuring highest quality & performance
  • Packam Index Drive offers low peak acceleration and a smooth index.
  • Electro less Nickle Plates (ENP) to avoid corrosion and for clean room applications
  • High Speed Up To 150 Cycles Per Minute
  • All Links Are Preloaded in X, Y, and Z Axis for ZERO Backlash
  • High Load Capacity as compared to other conveyors
  • Serve as the main chassis when multiple components are assembled
  • Reconfigurable lengths to match product size or increased production
  • Easy synchronization of other mechanical devices


Indexes/minute:

  • <150

Direction of rotation:

  • Clockwise, counter clockwise

Accuracy:

  • Refer to model specific page in our Technical Product Catalogue
